SERVICES
Collision Electrical: Pre-Repair Assessment – Recommendation / Repair Requirement – System Integration – Commission – Post-Repair Documentation.
CAPABILITY
Fig 2.2: Service Process Cycle, SPC-01
01Pre-Scan Assessment
Inspect, scan, analyse and document1.1 Prescan ID — specific component assessment for programming and ADAS calibration viability. Establish the vehicle, installed systems, pre-condition evidence and applicable OEM requirements before repair.
Vehicle IDVIN, model, variant and installed equipment
System AssessmentCollision systems, warnings, DTCs and repair context
Pre-Condition EvidenceCondition and fault evidence before work begins
OEM Service InformationManufacturer procedures and technical requirements
OUTPUTVehicle, system condition, pre-existing evidence and OEM requirements identified.
1.2 Post-Repair / Diagnostic ScanVerification and confirmation after collision repair.
1.3 Prescan IDDCollision electrical and module assessment. Detailed identification and diagnostics help reduce repair cost, delay and risk, with greater certainty on module condition and electrical systems requiring repair or replacement.
02Diagnostics Services
2.1 OEM DiagnosticDetermine the electrical or network fault and establish the applicable OEM diagnostic path.
Service InformationApplicable OEM specifications and repair requirements

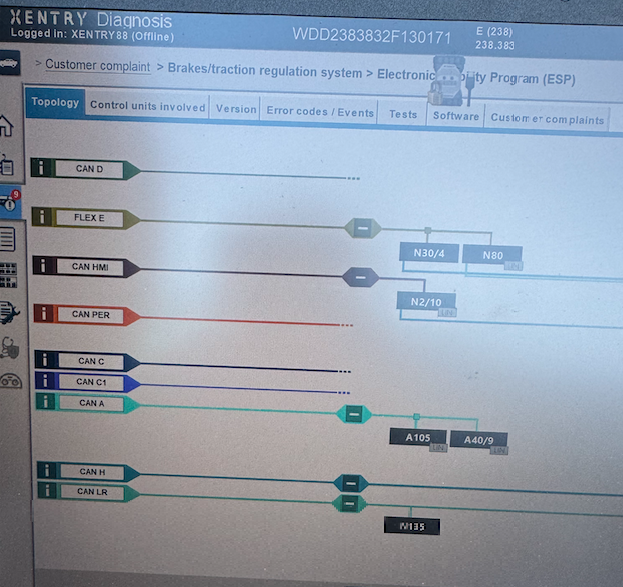

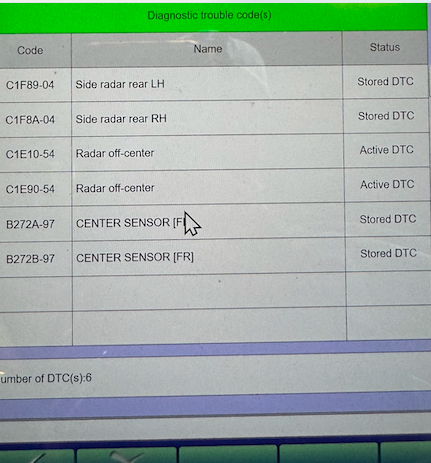

OEM DiagnosticsNetwork, live-data, DTC and electrical diagnosis
Repair ProceduresWiring diagrams and manufacturer diagnostic procedures
OUTPUTFault condition and repair requirement identified.
2.2 Diagnostic ResolutionFor partner repairers.
03Repair / Replace / Supply
3.1 Electrical RepairsTranslate diagnosis into repair, replacement, supply or fit requirements.

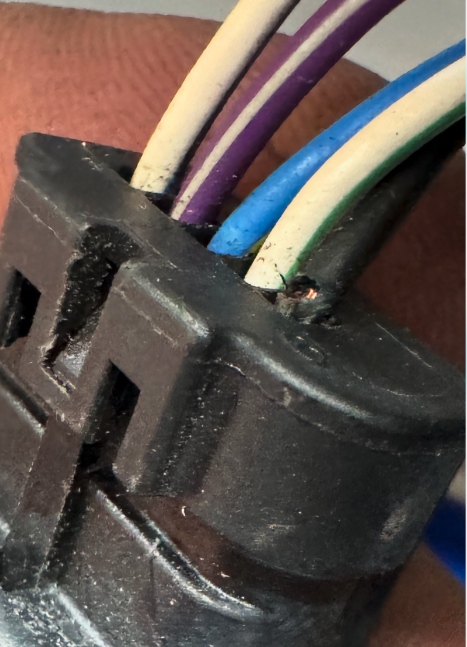

RepairElectrical or harness rectification
3.2 Specialist Module and Bracket Repair / PartsComponent renewal where required
3.3 Supply — Supply / Fit — On SiteCorrect specialist component or connector supply
FitInstallation to OEM requirement
OUTPUTRepair, replacement, supply and fit requirements defined.
04Software
4.1 OEM Licence — integrate the systemAuthorised access and OEM software functions connect repaired or replacement components to the vehicle.
Security AccessOEM gateway, SGW, SFD and protection access
4.2 Configuration / ProgrammingVehicle-specific coding, parameters and variants
Module ProgrammingOEM software installation and control-unit integration
OUTPUTComponents programmed, coded and integrated to the vehicle configuration.
05Commission / ADAS Calibration
5.1 System CalibrationComplete activation, relearn, initialisation and functional confirmation after repair and software integration — and/or ADAS calibration where required.
CalibrationOEM static or dynamic system calibration
ADASRadar, windscreen camera, LiDAR and surround view
InitialisationComponent learning, activation and zero points
Road TestOperational verification where required
OUTPUTSystems calibrated, initialised, road-tested and operationally verified.
06Certification & Warranty
Post-scan verification after testingJob Service Record with 12-month service warranty. Post-scan evidence and completed-work documentation support certification to manufacturer standard.
VerificationFinal DTC status and functional outcome
CertificationCompleted work documented to manufacturer standard
JOB SERVICE RECORD
JSR EXAMPLE
Public-facing documentation example. Identifying details removed.
OUTPUTPost-scan record and completed-work documentation produced.
ADAS scope: Ordinary parking sensors and reverse cameras are vehicle electronics, not ADAS. They are included as ADAS only where the actual function is an assisted-parking system.
